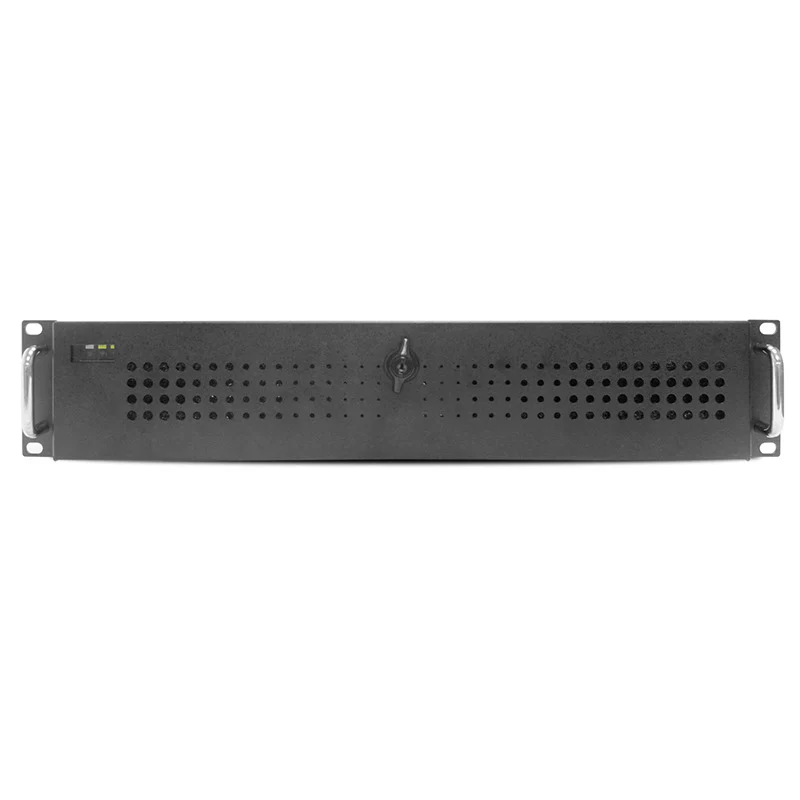

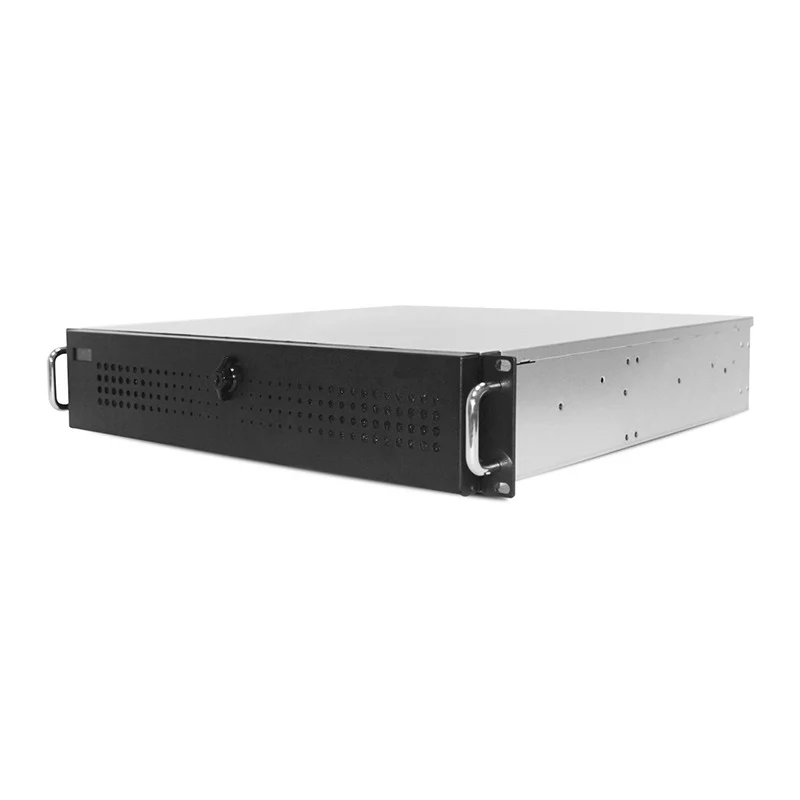

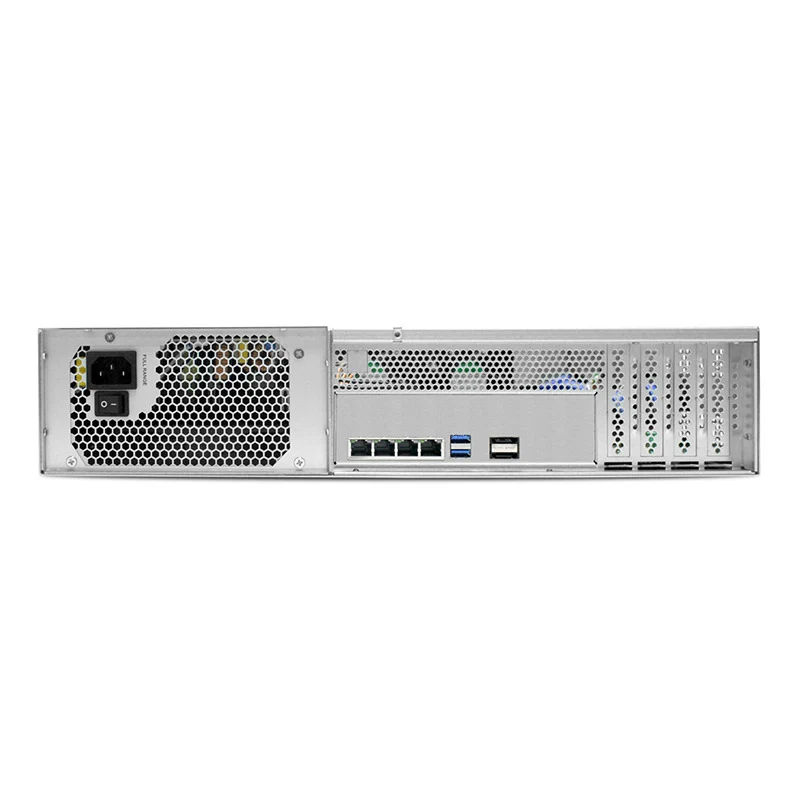

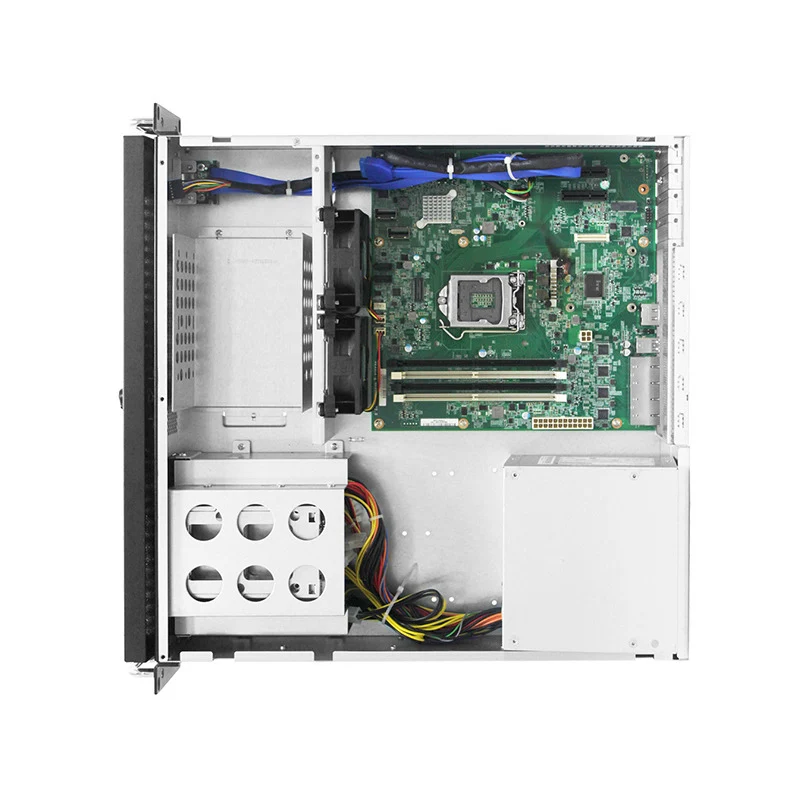

AIC 2U Rugged Short Chassis 1 x 5.25" + 1 x 3.5" External + 3 x 3.5" Internal (4 Low Profile)

Key features

• Support single PS2 or mini redundant power supply
• Easy swap middle fans
• 4 slot low profile
• Short depth design for space critical applications

IPC-C2S-N chassis is an ideal choice for entry-level Server. A PS/2 power supply provides price advantage over 2U size slim power supply.

Dimensions (W x D x H)

• mm : 427 x 430 x 88 • inches : 16.8 x 17 x 3.5

Industry Standard

EIA-RS310D

Material

SGCC

Color

Front Panel : Black

Cooling

Middle : 2 x 8025 (3P) cooling fans

Power Supply

Standard: PS2 type power supply or mini redundant

Expansion Slots

4 low profile

Front Panel

System power switch, System reset switch and USB3.0

LED Indicators

• System power • LAN1 • LAN2 • HDD

System Board

Up to 9.6” x 9.6” mATX MB

Drive Bays

• External : 1 x 5.25” & 1 x 3.5” • Internal : 3 x 3.5”

Backplanes

2 bay 7mm HD

Storage Temperature

0ºC(32ºF) ~ 50ºC(122ºF)

Humidity

5% ~ 95% non-condensing

Gross Weight (w/o PSU & Rail)

• kgs : 10 • lbs : 22

Package Dimension (W x D x H)

• mm : 575 x 610 x 228 • inches : 22.6 x 24 x 9

Cubic Feet

2.83

Container Load Quantity

• 20’ : 355 • 40’ : 708 • 40’ H : 850

Mounting

• 20” slide rail
