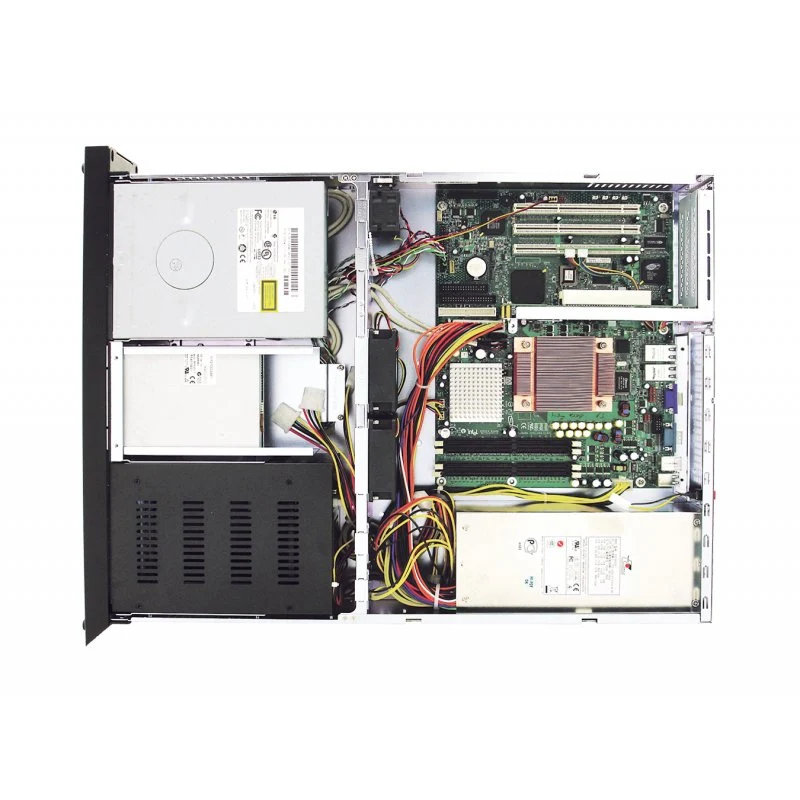

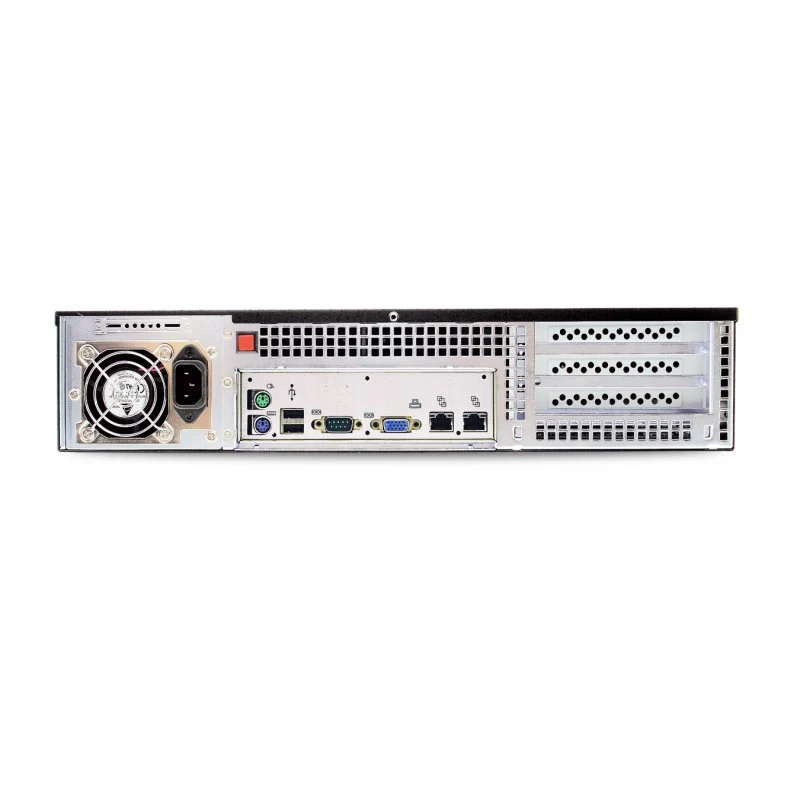

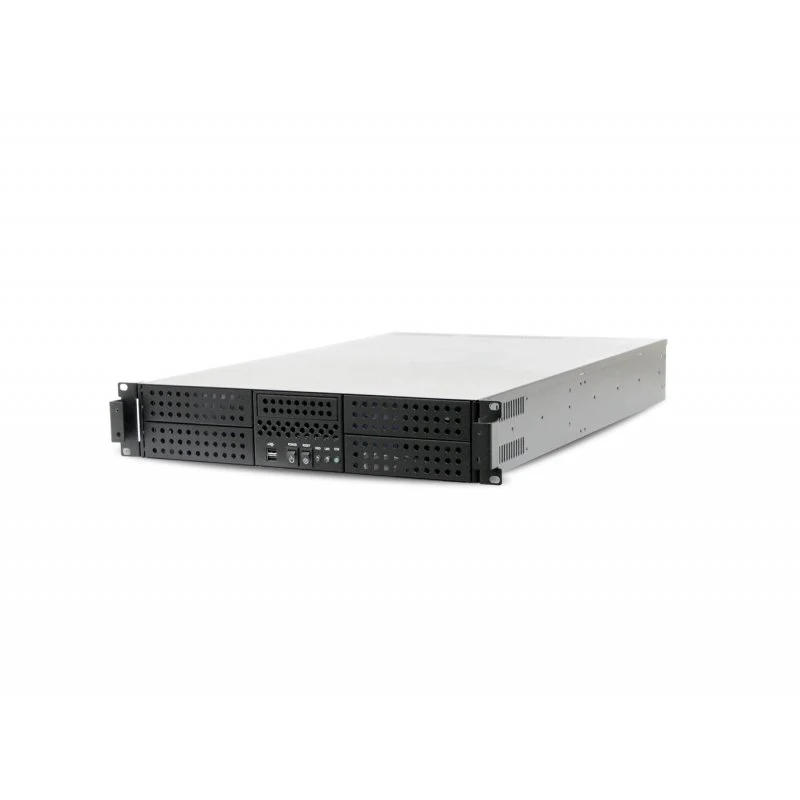

AIC 2U Rugged Medium Chassis 4 x 5.25" External + 1 x External 3.5" + 1 x Internal 3.5" (Low Profile Version)

Key Features

• Rugged design to meet most applications.
• Front access dual USB ports
• 3 x easy swap middle fans for superior cooling - (up to 6 fans)
• Supports single or redundant power supply
• Rear access power supply alarm reset button (For redundant power supply only)
• Optimised for Low Profile PCI Cards

Features And Benifits

The IPC-C2NB-LP chassis is designed with flexibility in mind. Four 5.25” bays allows user to install CDs, DVDs, 1x or 3x hot-swappable drive canisters. It is the ideal platform for Entry-level File Server and Network Attached Storage applications.

Dimensions (W x D x H) (with chassis ears)
• mm : 482.6 x 575.4 x 88.8
• inches : 19 x 22.7 x 3.5

Industry Standard
EIA-RS310D

Material
Heavy-duty preplated SGCC cold-rolled steel

Color
Black

Cooling
Standard :
• Middle : 2 x 80x25mm + 1 x 40x28mm easy swap fans

Add-on :
• Middle : 3 x 40x28mm fans

Power Supply
Please see Optional Product for details *Industrial PSU Only

Expansion Slots
• 7 low profile

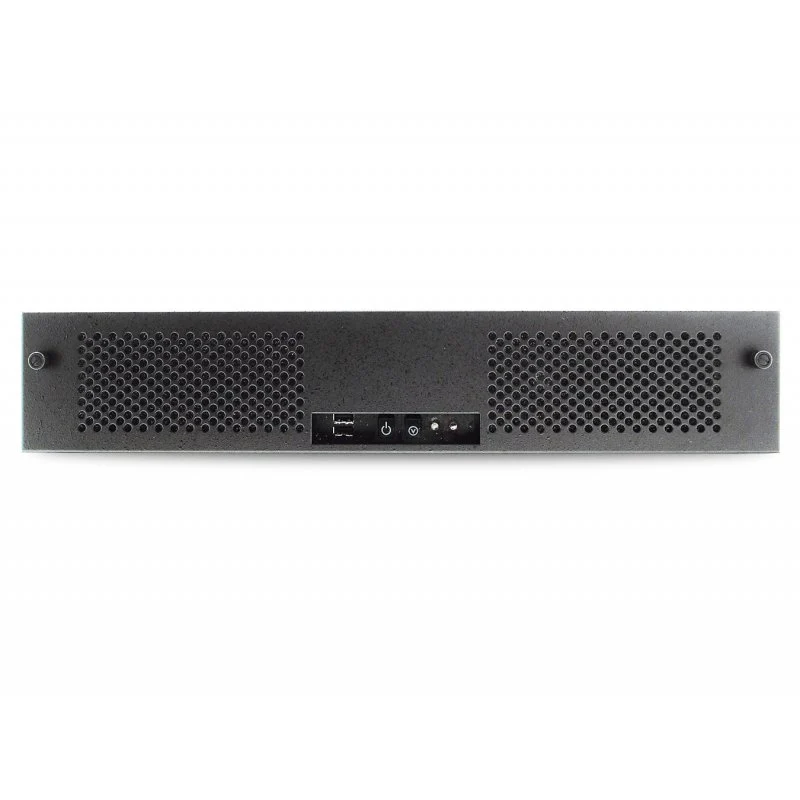

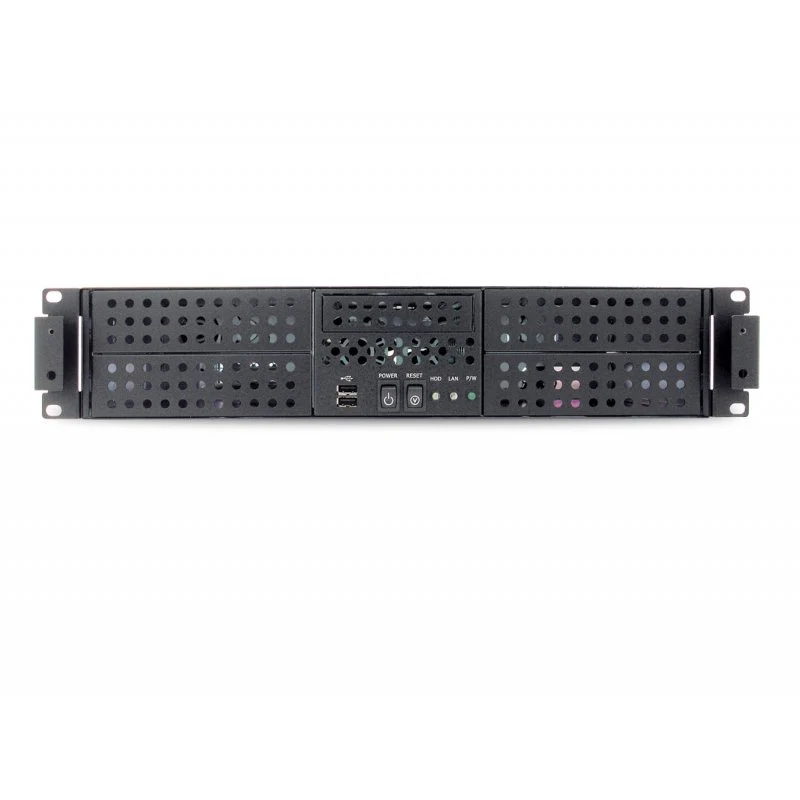

Front Panel
• Power on/off
• System reset
• 2 x USB ports

LED Indicators
• Power
• LAN
• Drive

System Board
Up to 12”(W) x 10.5”(D) ATX/SSI CEB compliant MB

Drive Bays
• External : 4 x 5.25” & 1 x 3.5”
• Internal : 1 x 3.5”

Storage Temperature
0°C(32°F) ~ 50°C(122°F)

Humidity
5% ~ 95% non-condensing

Gross Weight (w/o PSU & Rail)
• kgs : 13
• lbs : 28.7

Package Dimension (W x D x H)
• mm : 588 x 764 x 272
• inches : 23.1 x 30 x 10.7

Cubic Feet
3.7

Container Load Quantity
• 20’ : 255
• 40’ : 525
• 40’ H : 635

Mounting
Please see Optional Product for details
* All specifications are subject to change without notice.
