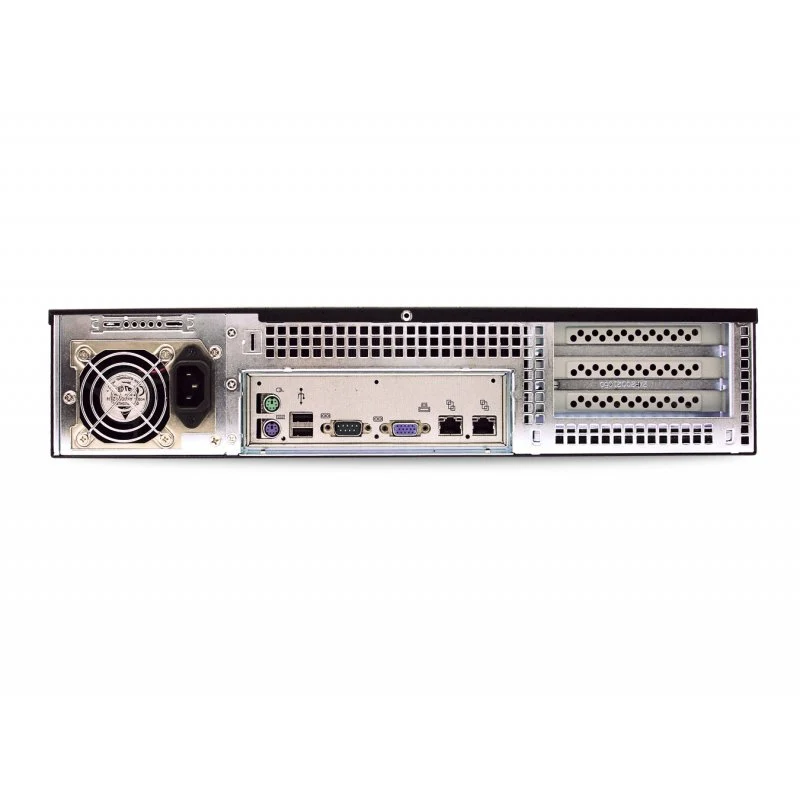

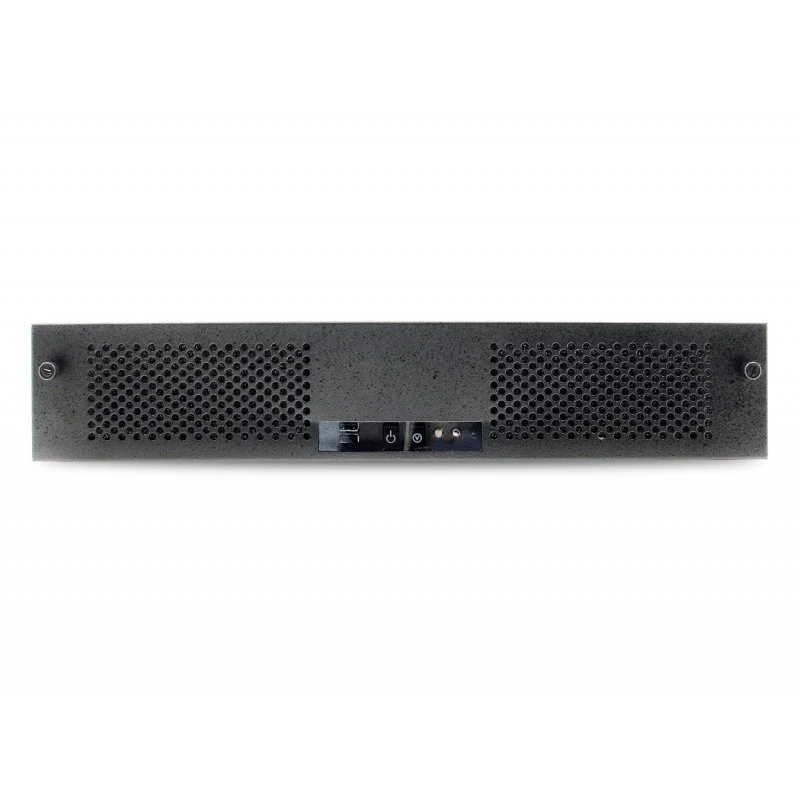

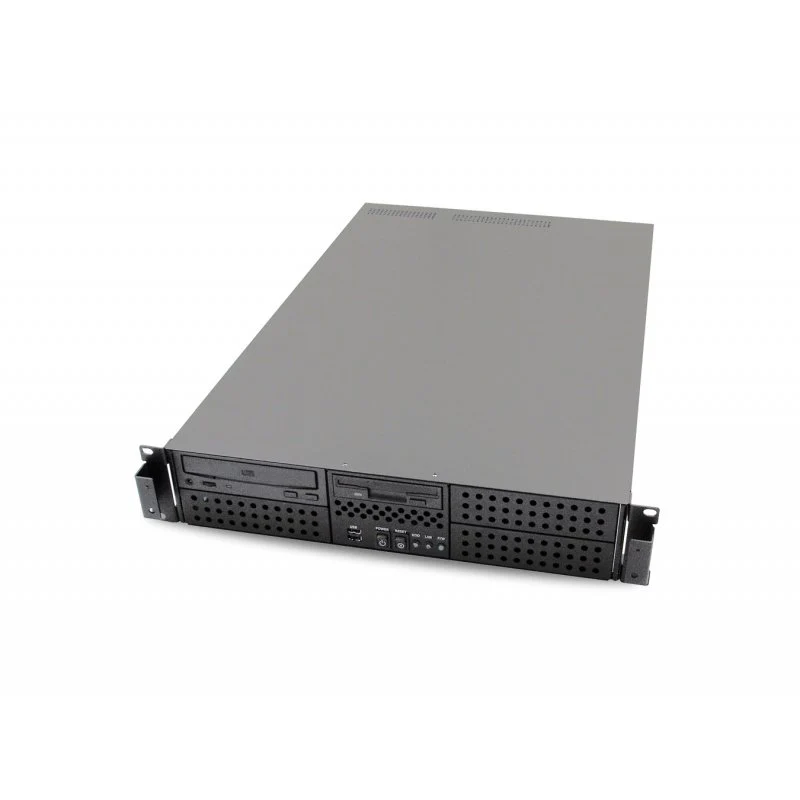

AIC 2U Rugged Long Chassis 4 x 5.25" External 1 x 3.5" External + 1 x 3.5" Internal (Low Profile Version)

Key Features

• Rugged design to meet most applications.
• Front access dual USB ports
• 3 x easy swap middle fans for cooling - (up to 6 fans)
• Supports single or redundant power supply
• Optimised for Low Profile Cards

Features And Benifits

The IPC-C2F-B-XP-LP chassis is designed with flexibility in mind. Four 5.25” bays allows user to install from DVD, CD, or different types of hot-swappable HDD canisters. A hot-swap redundant power supply is also supported for high availability. It is the ideal platform for entry-level File Server and Network Attached Storage applications.

Dimensions (W x D x H) (with chassis ears)
• mm : 482.6 x 685.8 x 88.8
• inches : 19 x 27 x 3.5

Industry Standard
EIA-RS310D

Material
Heavy-duty preplated SGCC cold-rolled steel

Color
Black

Cooling
Standard :
• Middle : 2 x 80x32mm + 1 x 40x28mm easy swap fans
Add-on :
• Middle : 3 x 40x28mm fans for upgrade

Power Supply
Please see Optional Product for details
Expansion Slots
• 7 low profile

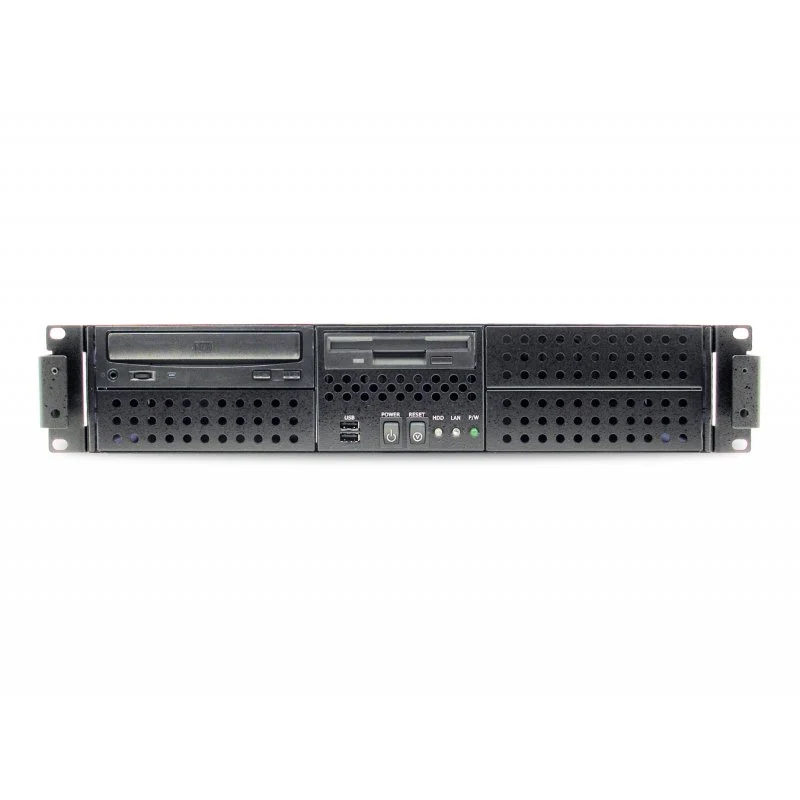

Front Panel
• Power on/off
• System reset
• 2 x USB ports

LED Indicators
• Power
• LAN
• Drive

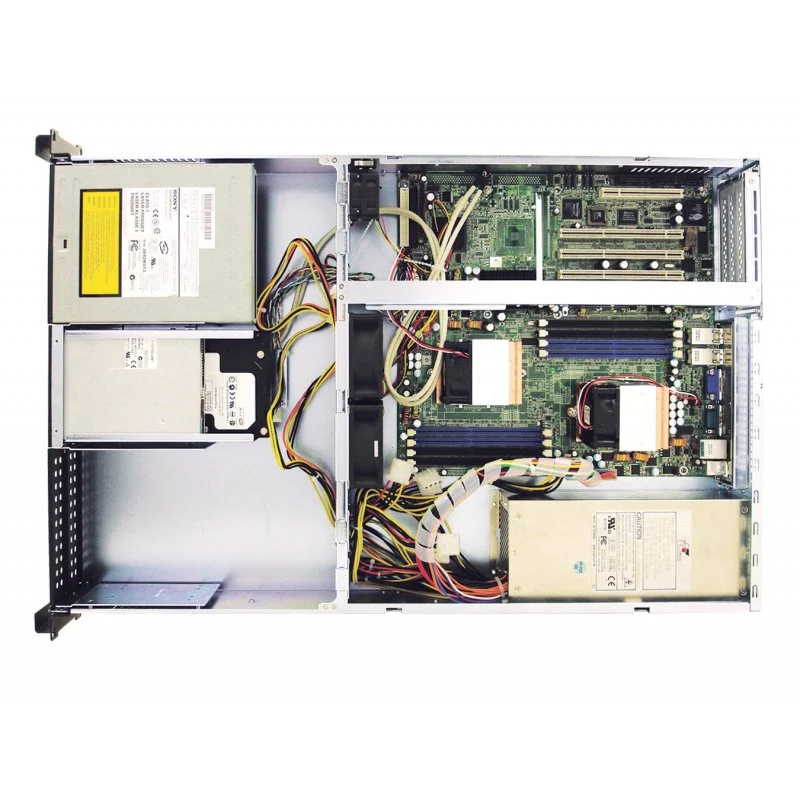

System Board
Up to 12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB

Drive Bays
• External : 4 x 5.25” & 1 x 3.5”
• Internal : 1 x 3.5”

Storage Temperature
0°C(32°F) ~ 50°C(122°F)

Humidity
5% ~ 95% non-condensing

Gross Weight (w/o PSU & Rail)
• kgs : 15
• lbs : 33

Package Dimension (W x D x H)
• mm : 588 x 852 x 259
• inches : 23.1 x 33.5 x 10.2

Cubic Feet
4.6

Container Load Quantity
• 20’ : 205
• 40’ : 425
• 40’ H : 510

Mounting
Please see Optional Product for details
* All specifications are subject to change without notice.
