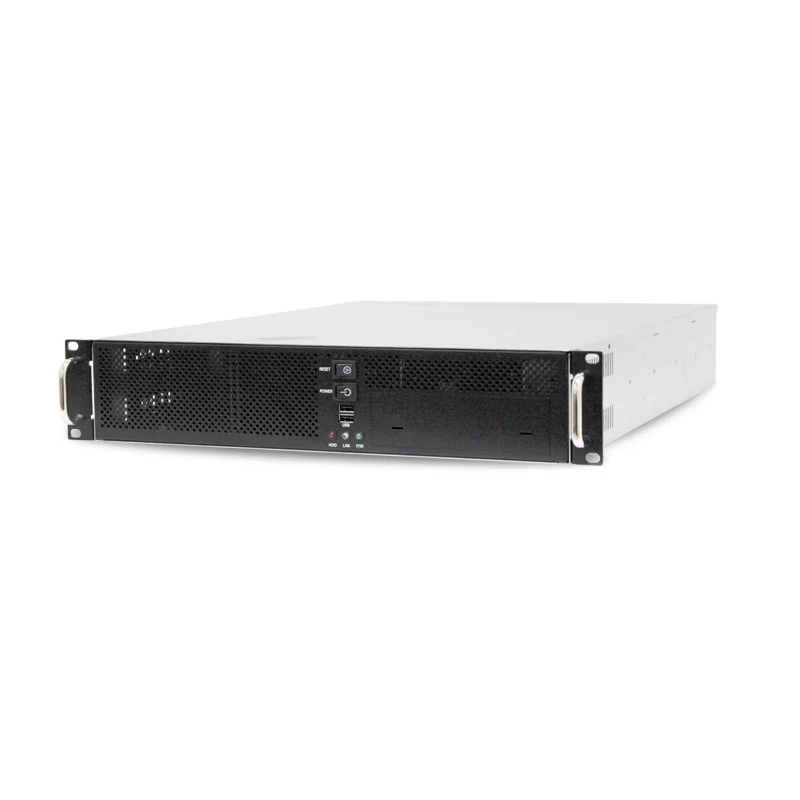

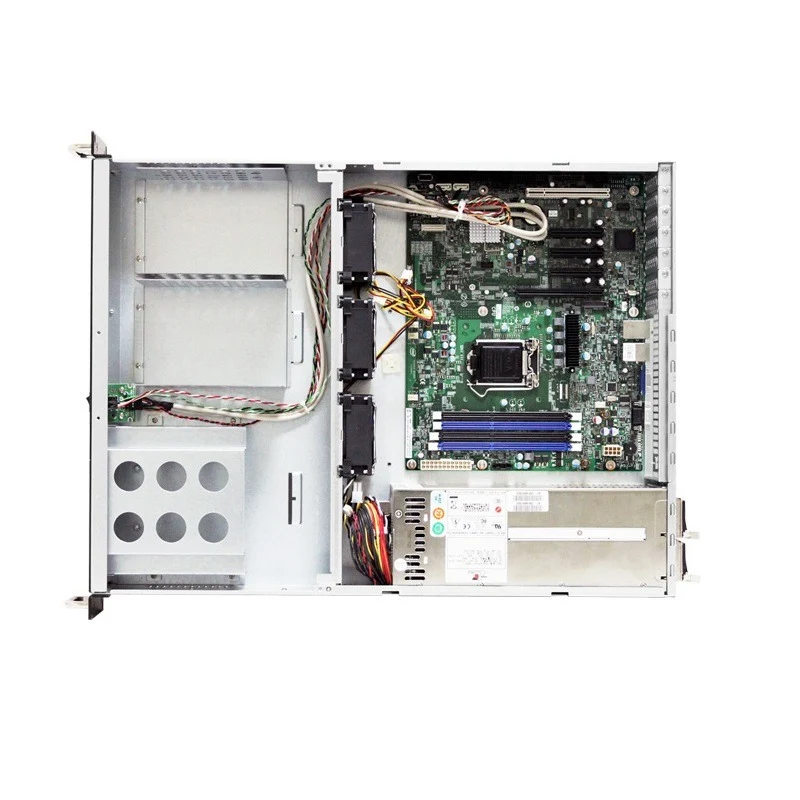

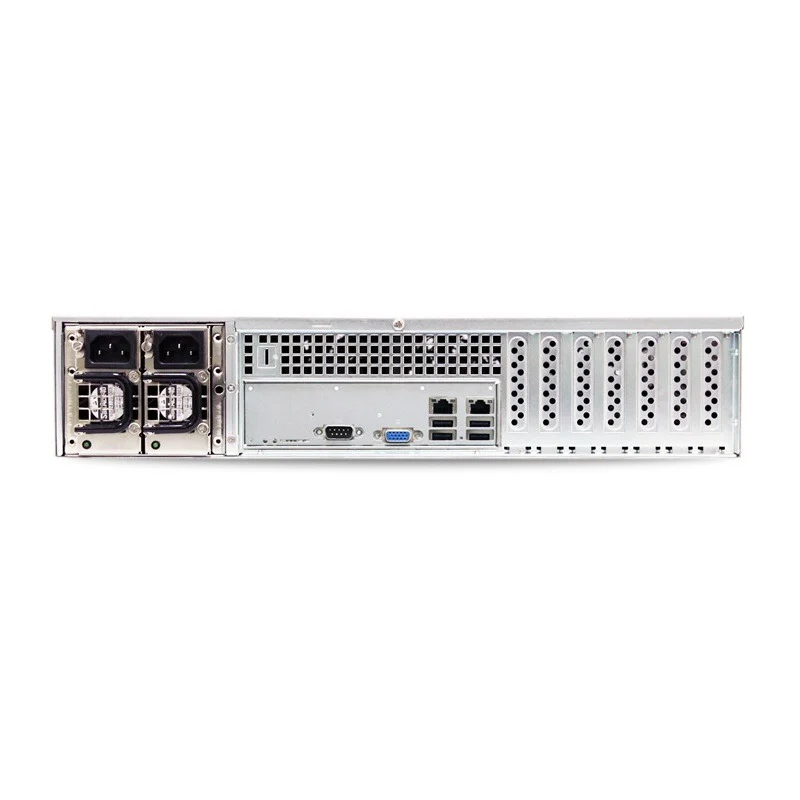

AIC 2U Medium Chassis 1 x 5.25" External + 7 x Internal 3.5" (Low Profile Version)

Key Features

• Front access dual USB ports
• 3 x easy swap middle fans for superior cooling
• Supports single or redundant power supply
• Supports 7 x 3.5” internal + 1 x 5.25” or 9 x 3.5” internal drive bays
• 7 x low profile expansion slots

Features And Benefits

The IPC-C2HB-LP chassis is an ideal choice for entry-level File Server for small to medium size offices. This 2U system can support up to 9 x 3.5" HDD.

Dimensions (W x D x H) (with chassis ears)
• mm : 479.8 x 574 x 88.2
• inches : 18.9 x 22.6 x 3.5

Industry Standard
EIA-RS310D

Material
Heavy-duty preplated SPGC cold-rolled steel

Color
Black

Cooling
Middle : 3 x 80x25mm fans

Power Supply
Please See Option Products

Expansion Slots
Options :
• 3 full height via riser card
• 7 low profile

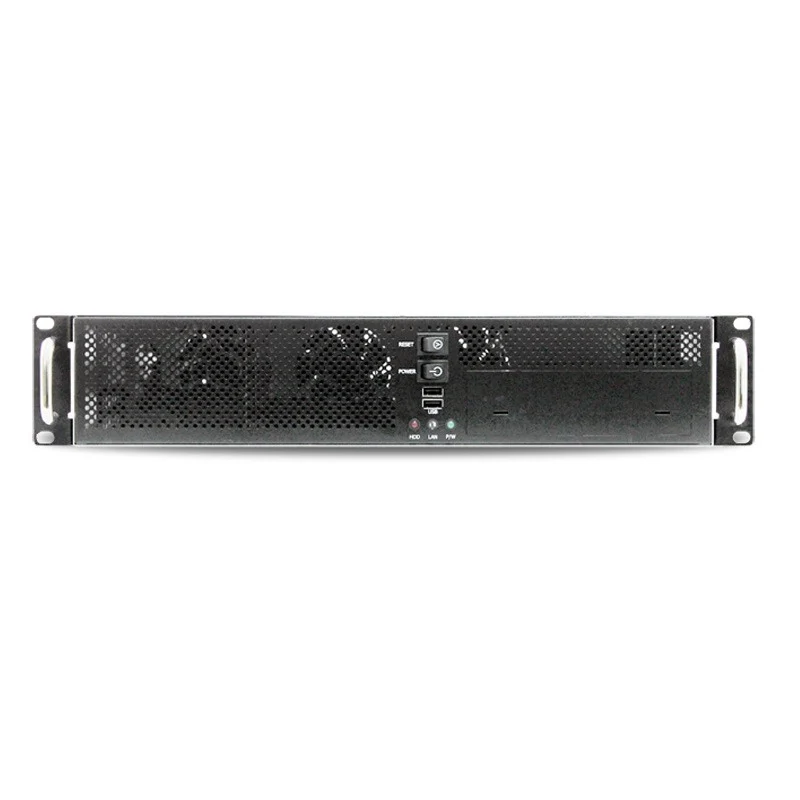

Front Panel
• Power on/off
• System reset
• 2 x USB ports

LED Indicators
• Power
• LAN
• Drive

System Board
Up to 12”(W) x 10.5”(D) MB
Drive Bays
Standard :
• External : 1 x 5.25” + Internal : 7 x 3.5”
Option :
• Internal : 9 x 3.5”

Storage Temperature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing

Gross Weight (w/o PSU & Rail)
• kgs : 12
• lbs : 26.5
Package Dimension (W x D x H)
• mm : 572 x 765 x 224
• inches : 22.5 x 30.1 x 8.8
Cubic Feet
3.2
Container Load Quantity
• 20’ : 295
• 40’ : 606
• 40’ H : 731

Mounting
Please See Optional Product
