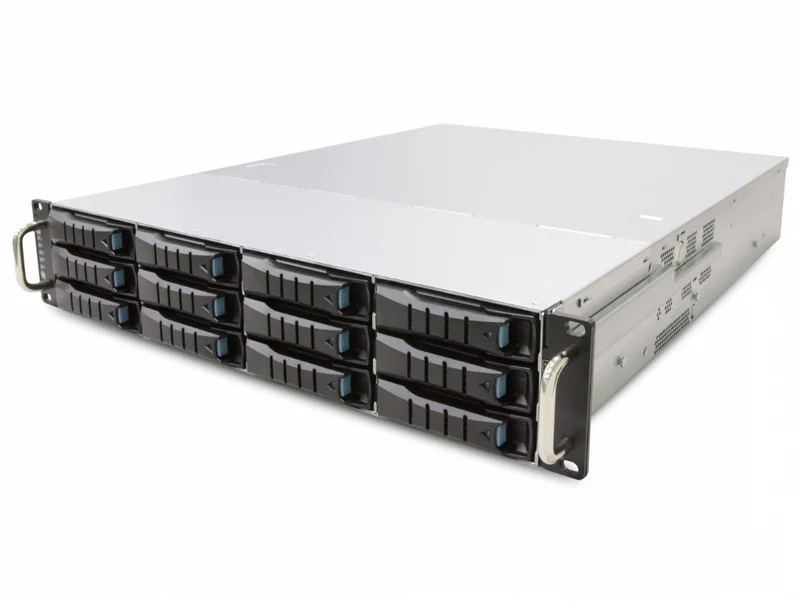

AIC 2U 12G Short Storage Server Chassis 12 x 3.5" Hot-Swap + 2 x 7mm 2.5" Rear Hot-Swap with 550W x2 Redundant PSU (Rails Included)

Key Features

• Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2 x 7mm Rear OS drive trays
- Tool-less top covers
- Tool-less backplane
- Tool-less slide rails
• 12Gb/s SAS expander chip on backplane
• Supports power cycling on single drive
• Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
• 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
• One front access USB 3.0 port
• Comes with an 80+ Platinum redundant PSU

The IPC-C2ETS-R55-EOB-12G-LP is a T series 2U 12-bay SAS/SATA storage server chassis. With its tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane, the IPC-C2ETS-R55- EOB-12G supports quick installation and easy maintenance. This tool-less design solution also features 3 x low-power consumption hot swap fans and shorter depth dimension, offering a cost-effective solution ideally suited for a broad range of applications.

Dimensions (W x D x H) (with chassis ears)
• mm : 483 x 560 x 88
• inches : 19 x 22 x 3.5

Industry Standard
EIA-RS310D

Material
Heavy-duty preplated SGCC cold-rolled steel

Color
Front Panel : Black

Cooling
Standard :
• Middle : 3 x 80x38mm PWM & low-power consumption hot swap fans

Power Supply
Standard :
• 550W 1+1 redundant PSU PMBus 1.2 80+ Platinum

Expansion Slots
7 low-profile

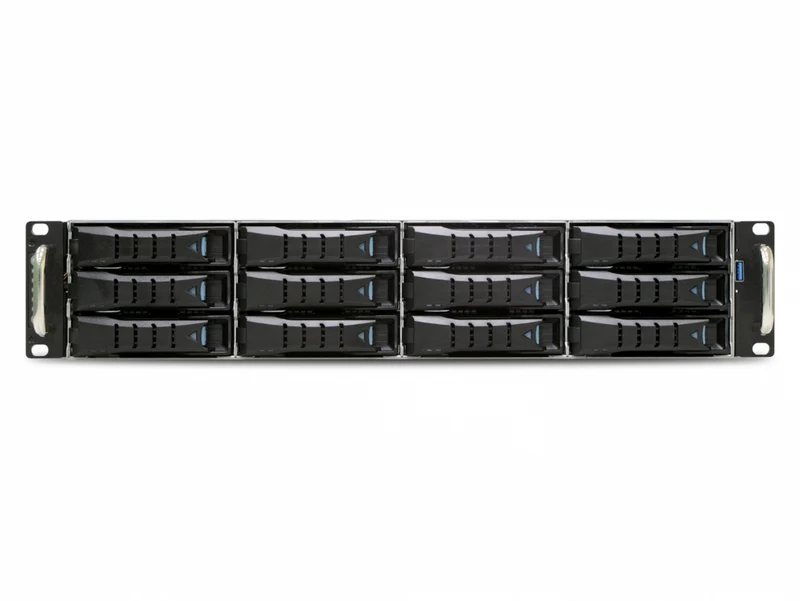

Front Panel
• Power on/off
• System reset
• 1 x USB 3.0 port

LED Indicators
• Power
• LAN
• Drive
• Alert

System Board
12”(W) x 9.6”(D) ATX MB

Drive Bays
• External : 12 x 3.5” hot swap + Rear : 2 x 7mm Rear OS drive trays

Backplane
1 x 12-port 12Gb SAS backplane with 28-PHY expander chip and 3 SFF-8643 connectors

Storage Temperature
0°C(32°F) ~ 50°C(122°F)

Humidity
5% ~ 95% non-condensing

Gross Weight (w/ PSU & Rail)
• kgs : 23.1
• lbs : 50.9

Package Dimension (W x D x H)
• mm : 590 x 885 x 288
• inches : 23.2 x 34.8 x 11.3

Cubic Feet
4.65

Container Load Quantity
• 20’ : 205
• 40’ : 420
• 40’ H : 505

Mounting
Standard : 28” tool-less slide rail
