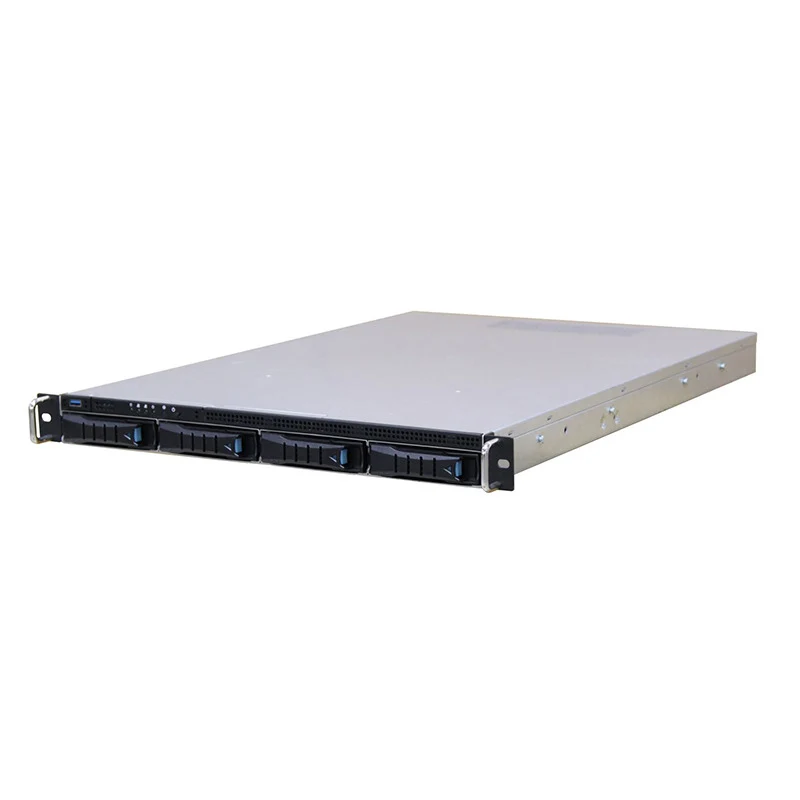

AIC 1U 12G storage server chassis supports external 4 x 12G 3.5" hot swap and internal 4 x 2.5" drive bays, with 500W single PSU (rails included)

Key Features

• Tool-less design supports quick installation and easy maintenance:
- Tool-less 2.5" drive trays
- Tool-less slide rail
• Supports 4 x 12G 3.5" hot swap drive bays
• Includes 500W single power supply. (option: 450W 1+1 redundant)
• Support 1 full height expansion slot
• One front access USB 3.0 port

RSC-1DT is a T-series 1U SAS/SATA storage server chassis supports external 4 x 12G 3.5" hot swap and internal 4 x 2.5" drive bays. This environmentally friendly solution features high-efficiency power supply, SGCC pre-plated steel, tool-less ball-bearing mounting rail, and easy-swap PWM fans, offering a cost-effective solution ideally suited for a broad range of applications. (Power supply is included. Motherboard is not included.)

Dimensions (W x D x H)

• mm: 483 x 680 x 43.5 • inches: 17 x 26.6 x 1.72

Industry Standard

EIA-RS310D

Material

SGCC

Color

Front Panel: Black

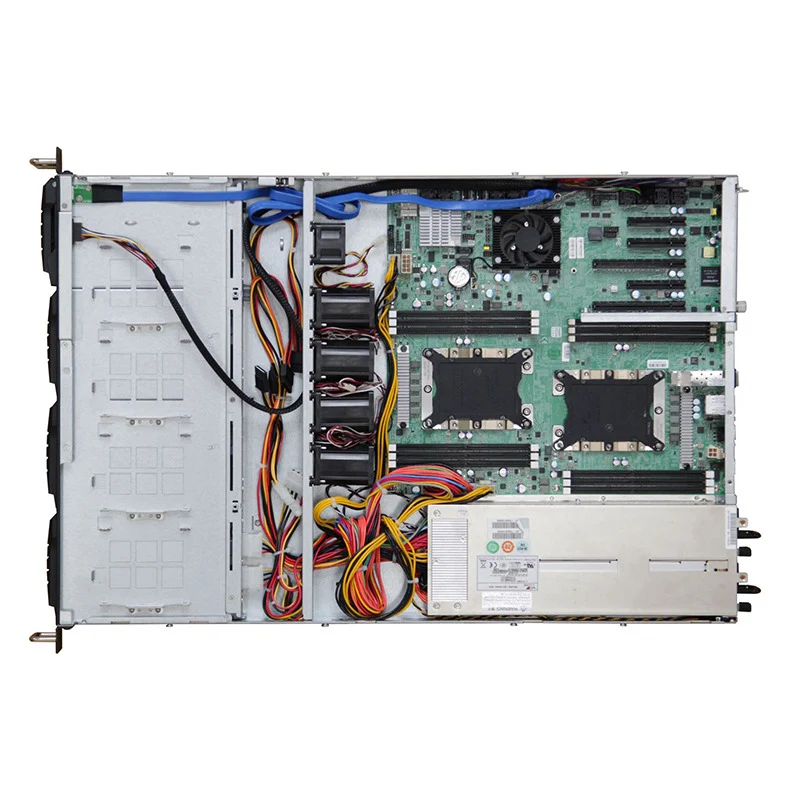

Cooling

Middle: 4 x 40x56mm + 1 x 40x28mm PWM fans (Option: 5 x 40x56mm PWM fans)

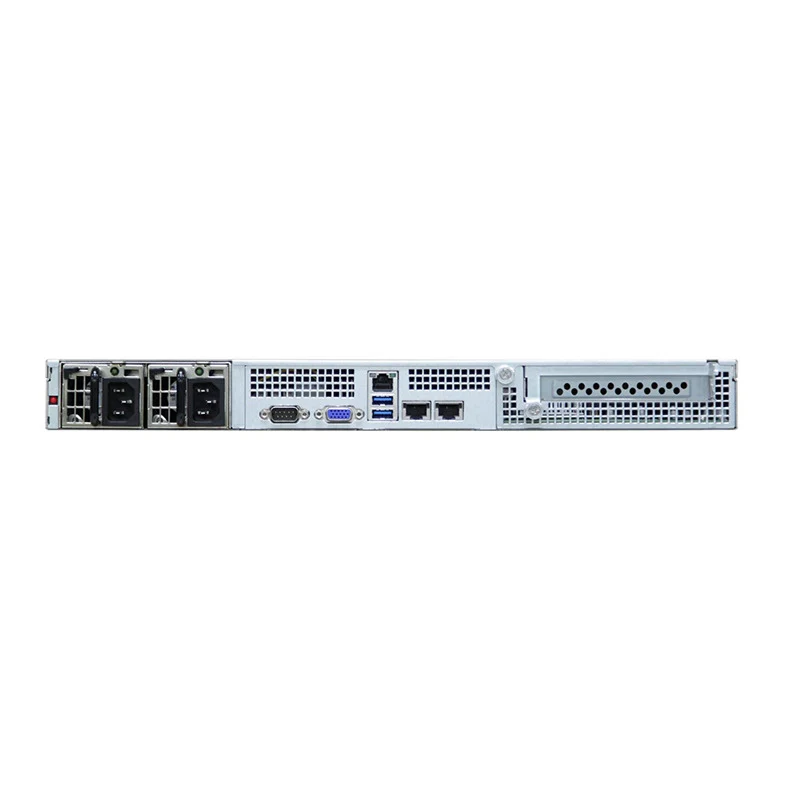

Power Supply

Standard: 500W single PSU Option: 450W 1+1 redundant

Expansion Slot

1 full height

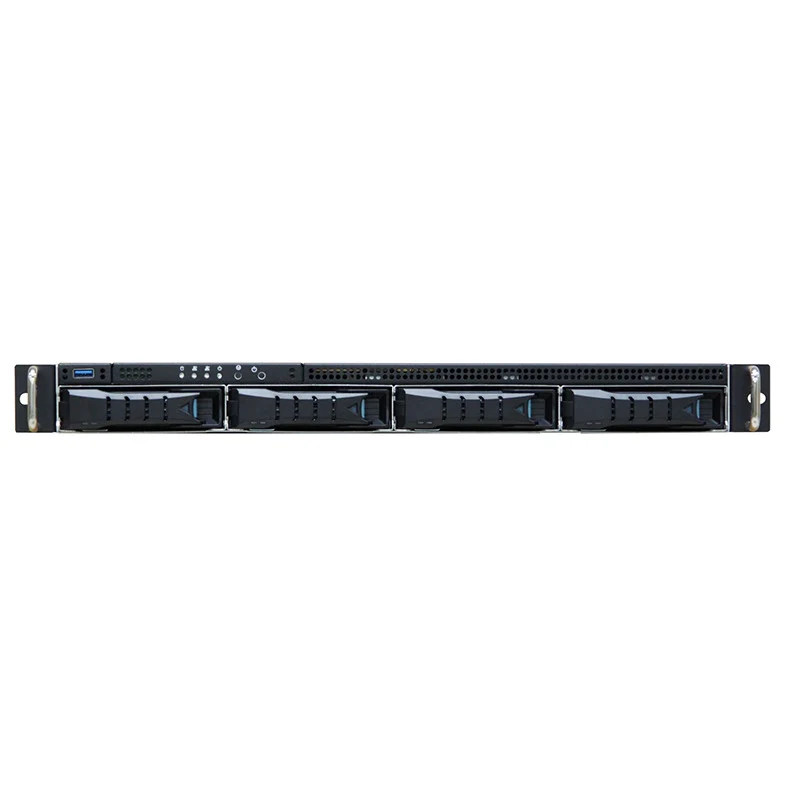

Front Panel

System power on/off and system reset, 1 x USB 3.0 port

LED Indicators

• Power • HDD • LAN

System Board

Up to 12"(W) x 13"(D) EATX MB

Drive Bays

• External: 3.5" hot swap x 4 • Internal: 2.5" x 4

Backplanes

4-port with SFF-8643 connector supports 12G

Storage Temperature

0°C(32°F) ~ 50°C(122°F)

Humidity

5% ~ 95% non-condensing

Gross Weight (w/ PSU & Rail)

• kgs: 20 • lbs: 44

Package Dimension (W x D x H)

• mm: 588 x 1050 x 263 • inches: 23.1 x 41.3 x 10.4

Cubic Feet

5.7

Container Load Quantity

• 20’: 165 • 40’: 340 • 40’H: 410

Mounting

Standard: 28” tool-less slide rail
