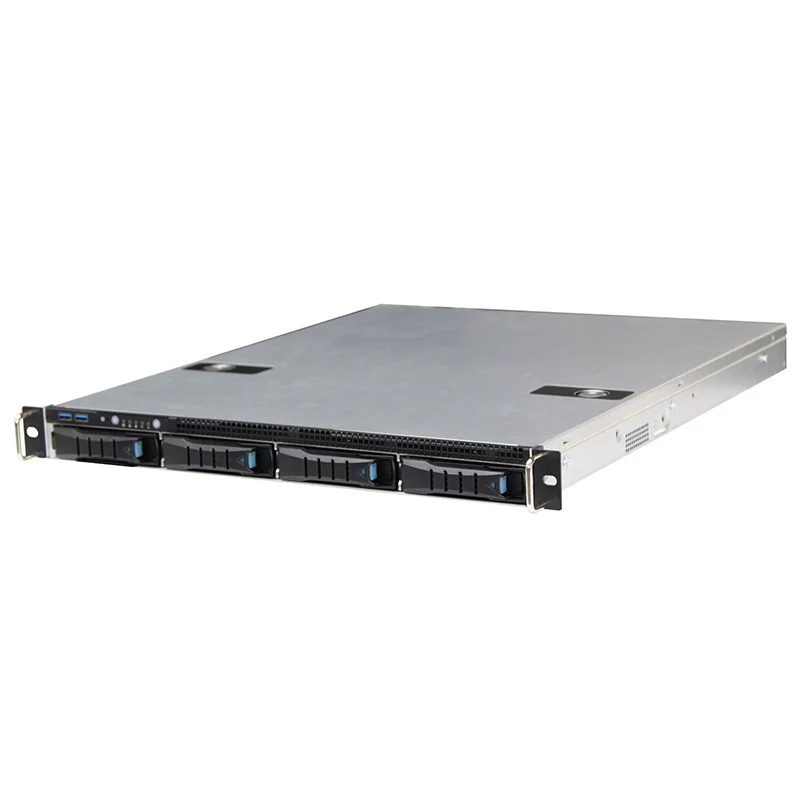

AIC 1U 12G Short Storage Server Chassis 4 x 3.5" Hot-Swap + 4 x 9mm 2.5" Internal with 400W Single PSU (Rails Included) * Expander On Board

Key Features

• Tool-less design supports quick installation and easy maintenance:
- Tool-less 2.5" drive trays
- Tool-less slide rail
• Supports 4 x 12G 3.5" hot swap drive bays
• Includs 400W single power supply
• Support 1 full height expansion slot
• One front access USB 3.0 port

RSC-1DTS is a T-series 1U SAS/SATA storage server chassis supports external 4 x 12G 3.5" hot swap and internal 4 x 2.5" (9mm) drive bays. This environmentally friendly solution features high-efficiency power supply, SGCC pre-plated steel, tool-less ball-bearing mounting rail, easy-swap PWM fans, and overall short depth, offering a cost-effective solution ideally suited for a broad range of applications, and especially space-concerned users. (Power supply is included. Motherboard is not included.)

Dimensions (W x D x H)

• mm: 483 x 560 x 43.5 • inches: 17 x 22 x 1.72

Industry Standard

EIA-RS310D

Material

SGCC

Color

Front Panel: Black

Cooling

Middle: 4 x 40x28mm PWM fans

Power Supply

Standard: 400W single PSU Option: 300W 1+1 redundant

Expansion Slot

1 full height

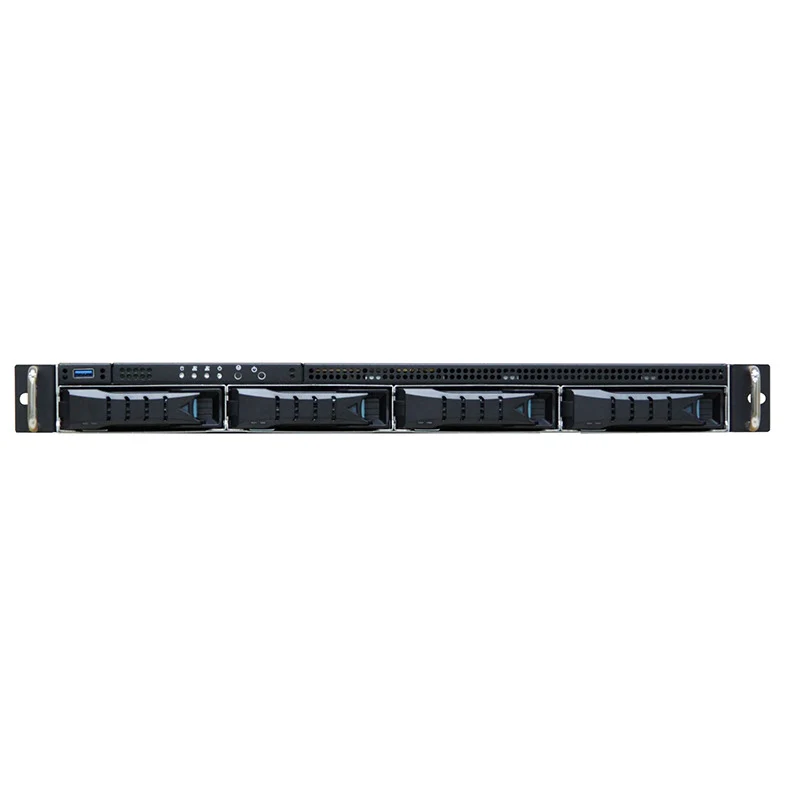

Front Panel

System power on/off and system reset, 1 x USB 3.0 port

LED Indicators

• Power • HDD • LAN

System Board

Up to 12"(W) x 9.6"(D) ATX MB

Drive Bays

• External: 3.5" hot swap x 4 • Internal: 2.5" x 4 (9mm)

Backplanes

4-port with SFF-8643 connector supports 12G

Storage Temperature

0°C(32°F) ~ 50°C(122°F)

Humidity

5% ~ 95% non-condensing

Gross Weight (w/ PSU & Rail)

• kgs: 14 • lbs: 30.9

Package Dimension (W x D x H)

• mm: 588 x 730 x 178 • inches: 23.1 x 28.7 x 7

Cubic Feet

4.2

Container Load Quantity

• 20’: 200 • 40’: 400 • 40’H: 450

Mounting

Standard: 28” tool-less slide rail
