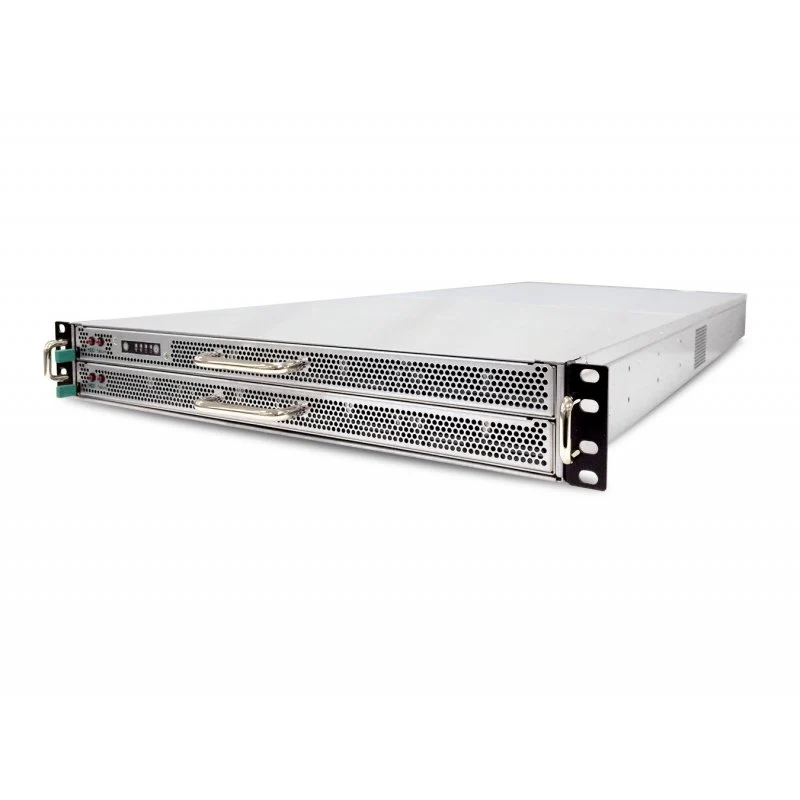

AIC 1.5U 6G High Density Server Storage 16 x 3.5" tool-less design and a 650Wx2 80+ Gold PSU (Rails Included)

Key Features

• High-density design for space saving (cost saving)
• 2 drawers to load up to 16 hot swap drives
• Tool-less design supports quick installation and easy maintenance:
• Tool-less 3.5” & 2.5” drive trays
• Anti-vibration rubbers on drive trays and fans
• Silicon gaskets to absorb vibration from sides of drives
• Easy swap system fans designed to minimize rotational vibration while providing superior cooling

Features And Benifits

As the manager or operator of a data center, it is important to maintain tight control over costs while providing the maximum uptime for your customers. For that reason, AIC has developed the RSC-15, a 1.5U 16-Bay storage server chassis. It enables data center services companies that run object storage applications a more efficient and economical solution. If you run Hadoop or Ceph, the RSC-15 is designed to provide dynamic amounts of computing power and abundant storage space at the same time to meet shifting application requirements. The tool-less design makes installation and maintenance quick and easy. Rubbers on the drive tray and silicon gaskets protect against vibrations. Its high-density, space-saving design saves you money. Its drives can be hot swapped at a moment’s notice, resulting in less downtime. Even though RSC-15 was initially designed for data centers, the aforementioned features make it a good solution for media production as well.

Dimensions (W x D x H) (with chassis ears)
• mm : 483 x 910 x 66.6
• inches : 19 x 35.8 x 2.6
Option:
• mm : 483 x 838.2 x 66.6
• inches : 19 x 33 x 2.6

Industry Standard
EIA-RS310D

Material
Heavy-duty preplated SPGC cold-rolled steel

Color
Not coated

Cooling
Middle : 4 x 60x38mm PWM easy swap fans

Power Supply
650W 1+1 Redundant PSU 80+ Gold

Expansion Slot
1 full height & 1 low profile via riser card
(6th + 5th slots or 6th + 4th slots)

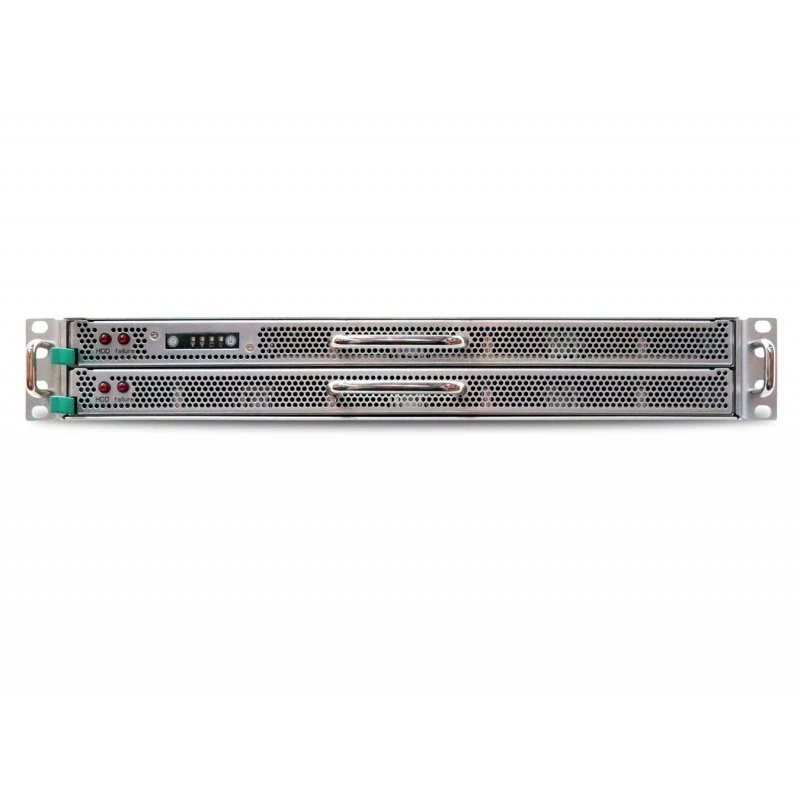

Front Panel
• Power on/off
• System reset

LED Indicators
• Power
• LAN
• Drive

System Board
12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB

Drive Bays
Internal : 16 x 3.5” hot swap & 2 x 2.5”

Backplanes
4 x 4-port 12Gb SAS backplanes with single SFF-8643 connector on each

Storage Temperature
0°C(32°F) ~ 50°C(122°F)

Humidity
5% ~ 95% non-condensing

Gross Weight (w/ PSU & Rail)
• kgs : 28
• lbs : 61.7

Package Dimension (W x D x H)
• mm : 590 x 1070 x 280
• inches : 23.2 x 42.1 x 11

Cubic Feet
6.2

Container Load Quantity
• 20’ : 155
• 40’ : 150
• 40’ H : 385

Mounting
Standard : 30” tool-less slide rail

* All specifications are subject to change without notice.
