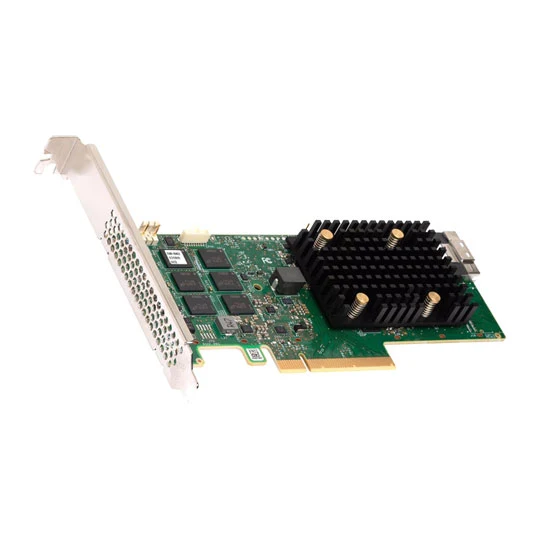

8 Port Broadcom MegaRAID 9560-8i, Internal, 12GB/s SAS/SATA/PCIe (NVMe), PCIe 4.0 x8, 4GB Cache

The MegaRAID 9500 series is the industry’s first PCIe Gen 4.0 RAID adapter family, offering PCIe Gen 4.0 host and storage interfaces. The MegaRAID 9560-8i adapter, based on the SAS3908 high-port count PCIe 4.0 x8 RAID-on-Chip (RoC), delivers twice the performance of previous generations.

The 9560-8i is compatible with existing PCIe SFF-8639 Module (U.2) backplanes, allowing users to boost performance for today’s ever increasing bandwidth environments. Coupled with two industry initiatives expanding the deployment of Tri-Mode SerDes technology, which enables the operation of NVMe, SAS or SATA devices in a single drive bay, the 9560-8i is instrumental in getting the most performance and flexibility out of U.3 backplanes:

• SFF-TA-10001 Specification (U.3), which defines a common bay type for SAS, SATA and NVMe.
• Universal Backplane Management (UBM), which defines a common backplane control and management framework.

With Tri-Mode SerDes technology, the adapter negotiates between speeds and protocols to seamlessly work with any of the three types of storage devices. Tri-Mode support provides a non-disruptive way to evolve existing data center infrastructure.

Features

• Connect up to 240 SAS/SATA devices or 24 NVMe devices per controller.
• Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors.
• Form-factor friendly cable exit.
• Support critical, high-bandwidth applications with PCIe 4.0 connectivity.
• Balance protection and performance for critical applications with RAID 0, 1, 5, 6, 10, 50 and 60.
• JBOD mode with RAID 0, 1, 10 and JBOD for SDS environments.
• Add more protection and peace of mind with CacheVault flash cache protection.

Ports Total	8 Port
Ports Internal	8 Int Ports
Connectors	1 x SFF-8654
Interface	PCIe 4.0 x8
JBOD	No
Low Profile Compatible	No
Cache Memory	4GB
