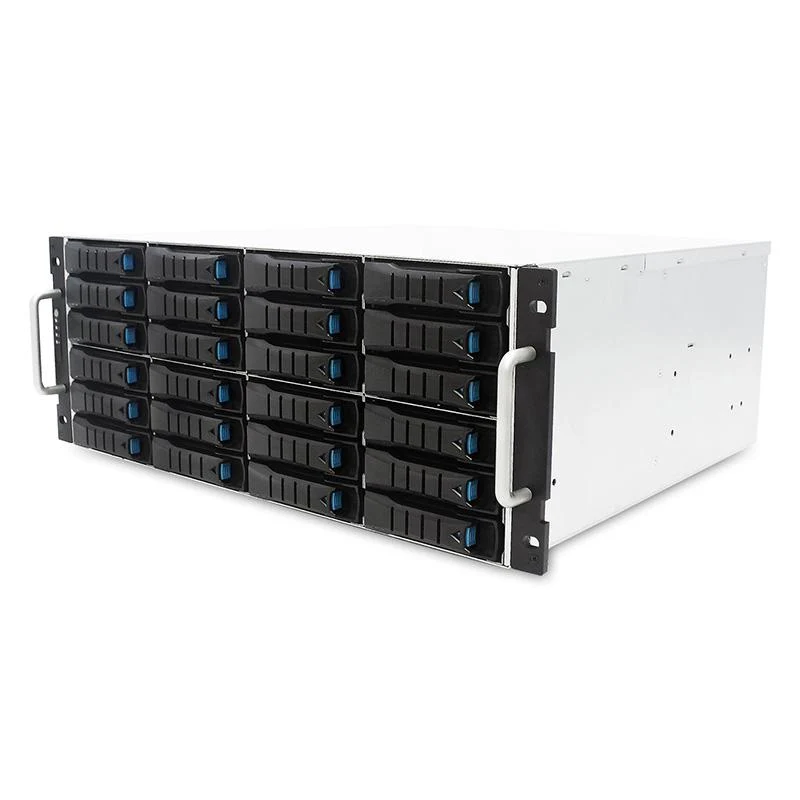

4U 12G JBOD 24 x 3.5" Hot-Swap Tool-less Drive Trays with Dual Hot-Swap Expander ,Dual BMC and 550W Redundant PSU, Short Depth

Key Features

• Board to board connections no signal cable and no PSU cable
• Tool-less design
• Hot-swap expander module, drives, PSU and fans
• Short-depth
• Clear indicators
• Optimized thermal solution
• BMC onboard

Features & Benefits

IPC-S4ET is an innovative 4U24 JBOD that integrates 3.5" SAS (12G,dual) /SATA (6G, single) disk drive, Broadcom SAS35X-Series expander chip, and board-to-board connection design into a compact and stable system with exceeding productivity.

Key Features

• Board to board connections no signal cable and no PSU cable
• Tool-less design
• Hot-swap expander module, drives, PSU and fans
• Short-depth
• Clear indicators
• Optimized thermal solution
• BMC onboard

General

Number of Expander: • Dual

Expander Chip: • LSI SAS35x40

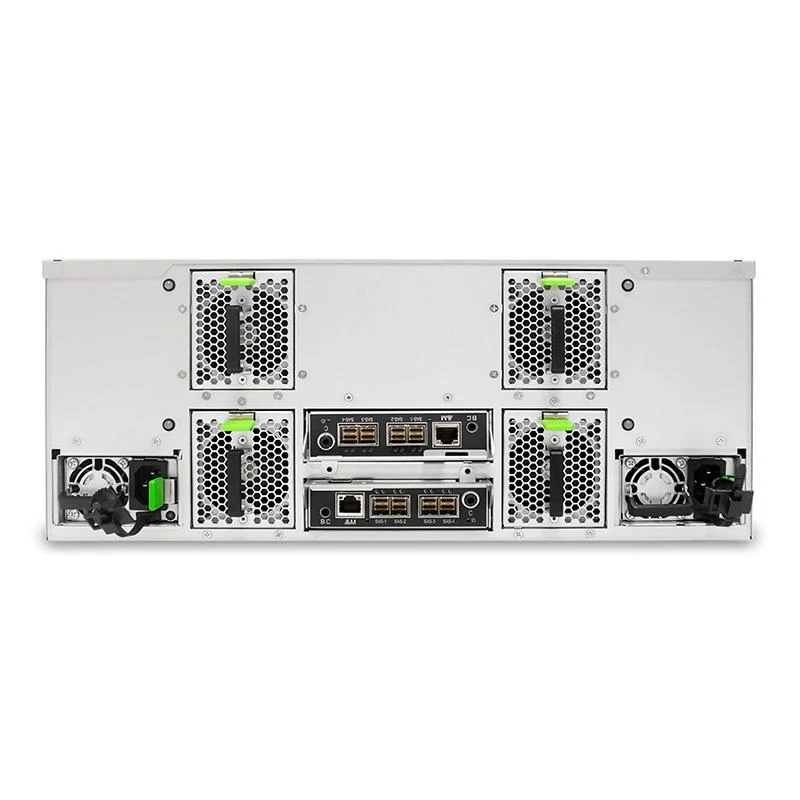

Host/Expansion Interface: • 4 x Mini SAS HD (SFF-8644) per expander module

Drives Supported

Drive Interface: • 12Gb & 6Gb SAS if using dual expanders • 12Gb & 6Gb SAS/SATA if using single expander

Form Factor: • 3.5”

Administration / Management

Admin/Firmware Upgrade: • In-band & Serial port interface • IEM port

LED indicators, Audible Alarm: • Yes

Hot-swap & Redundancy

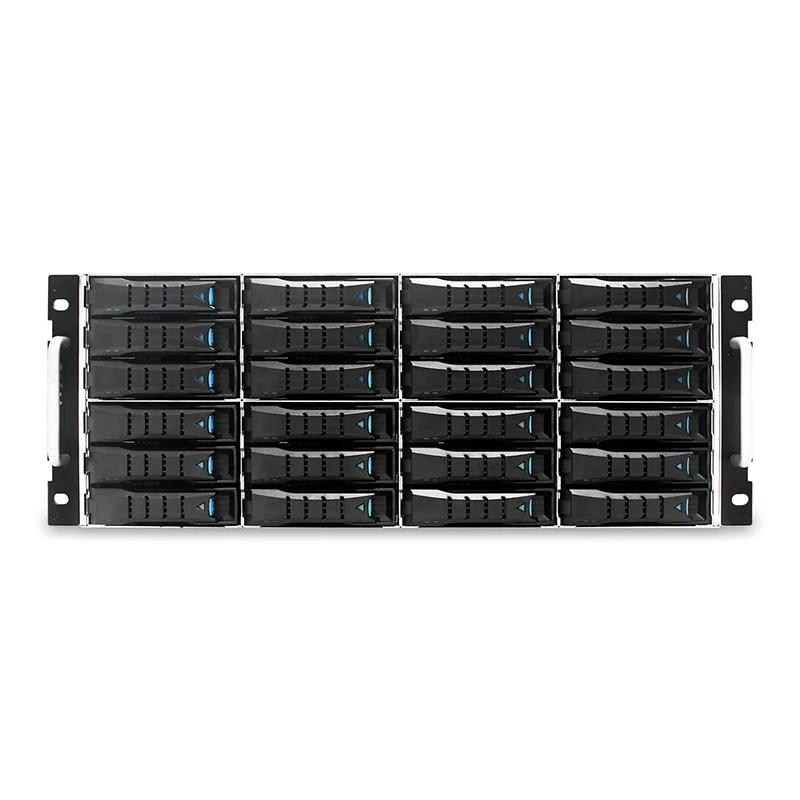

Drive Bays: • 24

Cooling: • 4 x 60x56mm hot swap fans

Power Supply: • 550W 1+1 hot swap redundant 80+ Platinum

Power Entry: • Dual AC Inlet

Expander Modules: Dual expanders

Electrical & Environment

Universal A/C Input: • 100~127V~, 50/60Hz, 7.0A • 200~240V~, 50/60Hz, 3.5A

Operating Environment: • Temperature: 0ºC to 35ºC • Relative humidity: 20% to 80%

Non-operating Environment: • Temperature: -20ºC to 60ºC • Relative humidity: 10% to 90%

Physical Specification

Dimensions (W x D x H): • mm: 438 x 385.5 x 174.4 • inches: 17.2 x 15.1 x 6.9

Gross Weight (w/ PSU; w/o Rail & Disks): • kgs: 25.93 • lbs: 57.17

Packaging Dimension (W x D x H): • mm: 605 x 680 x 446 • inches: 23.8 x 26.8 x 17.6

Mounting: • Friction Bracket Option: 20” tool-less rail
