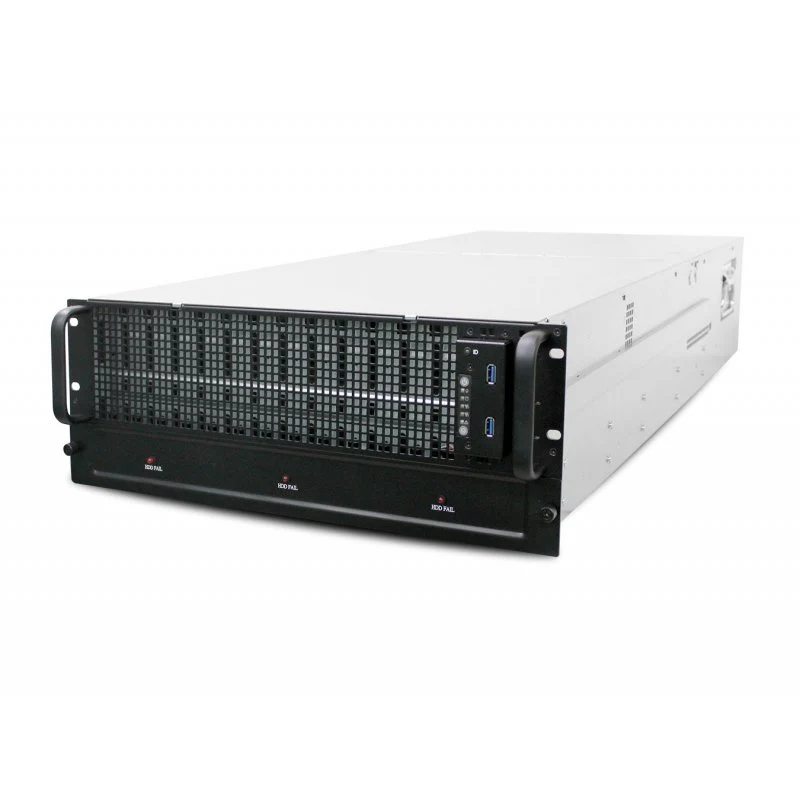

4U 12G 60 x 3.5" + 2 x 2.5" Rear Hot-Swap Enterprise Storage Server Chassis with an 1600W Redundant PSU

Key Features

• High density storage server chassis
• Tool-less design for easy maintenance:
- 60 Tool-less top-loading 3.5” drive trays with built-in light pipe for drive status LED
- Tool-less top cover
- Tool-less drive backplane sliding mechanism
- Tool-less rails
• Hot swap cooling fans and 80+ redundant power supply
• Supports up to 2 x 2.5” hot swap drives for OS
• Supports single drive power cycle setting

Features And Benefits

IPC-C4H-R1400-12G is a 4U 12G 60-Bay high density storage server chassis with tool-less design features. Unlike typical 4U server chassis which accommodate 24 or 36 drives; the IPC-C4H-R1400-12G supports 60 top-loading 3.5” drive trays to save rack space and lower power consumption. It is suitable for cold storage which requires the capacity for vast amount of data but allows slower data retrieval and response time. Some suitable applications include media storage, medical imaging, email archiving, public or private cloud storage and data warehousing. Too-less features on drive trays, top cover and backplane sliding mechanism make assembly and maintenance quick and easy.

Dimensions (W x D x H) (with chassis ears)
• mm : 483 x 950 x 176
• inches : 19 x 37.4 x 6.9

Industry Standard
EIA-RS310D

Material
Heavy-duty preplated SPGC cold-rolled steel

Color
Front Panel : Black

Cooling
• Middle : 4 x 80x38mm PWM & low-power consumption hot swap fans
• Rear : 2 x 60x38mm PWM easy swap fans

Power Supply
• Standard : 1600W 1+1 redundant PSU 80+ Platinum

Expansion Slots
7 full height

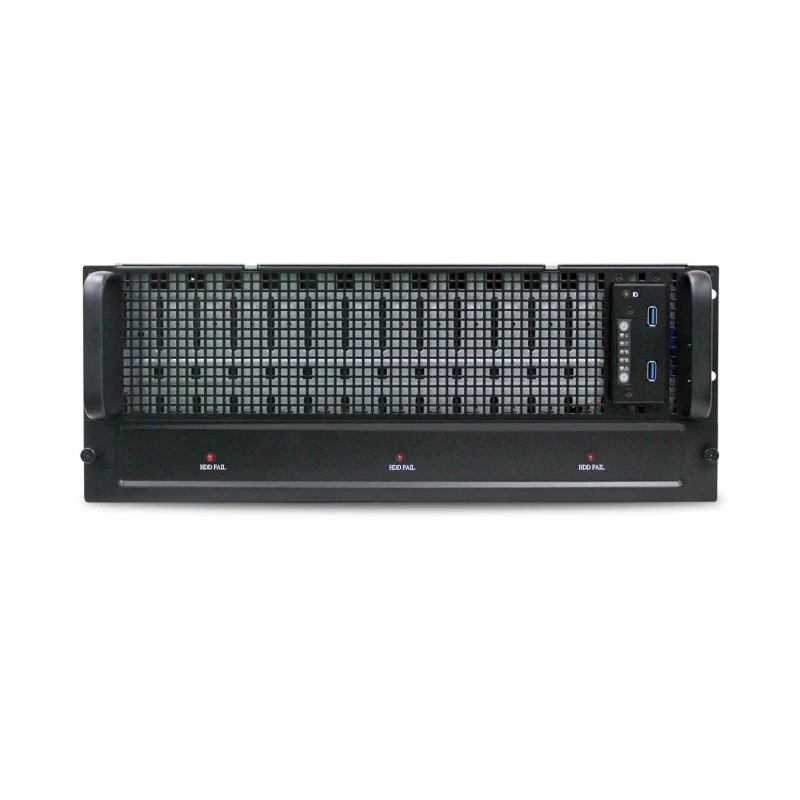

Front Panel
• System power on/off
• System reset
• 2 x USB 3.0 ports

LED Indicators
• System Power
• LAN
• Drive
• Alert

System Board
12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB

Drive Bays
External : 2 x 2.5” hot swap (up to 6 if using 1890W PSU)
Internal : 60 x 3.5” hot swap

Backplanes
3 x 20-port 12Gb SAS backplanes with 28-PHY expander chip and 2 SFF-8643 connectors on each

Storage Temperature
0°C(32°F) ~ 50°C(122°F)

Humidity
5% ~ 95% non-condensing

Gross Weight (w/ PSU & Rail) (excluding pallet)
• kgs : 47
• lbs : 103.6

Package Dimension (W x D x H)
• mm : 593 x 1121 x 386
• inches : 23.3 x 44.1 x 15.2

Cubic Feet
8.8

Container Load Quantity
• 20’ : 97
• 40’ : 199
• 40’ H : 240

Mounting
Standard : 25” tool-less slide rail
