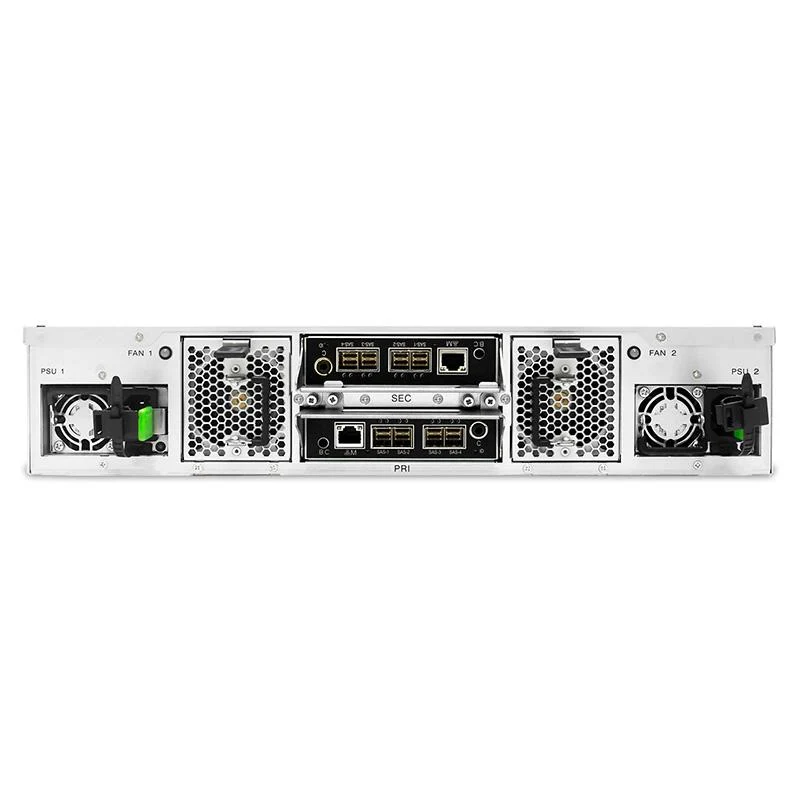

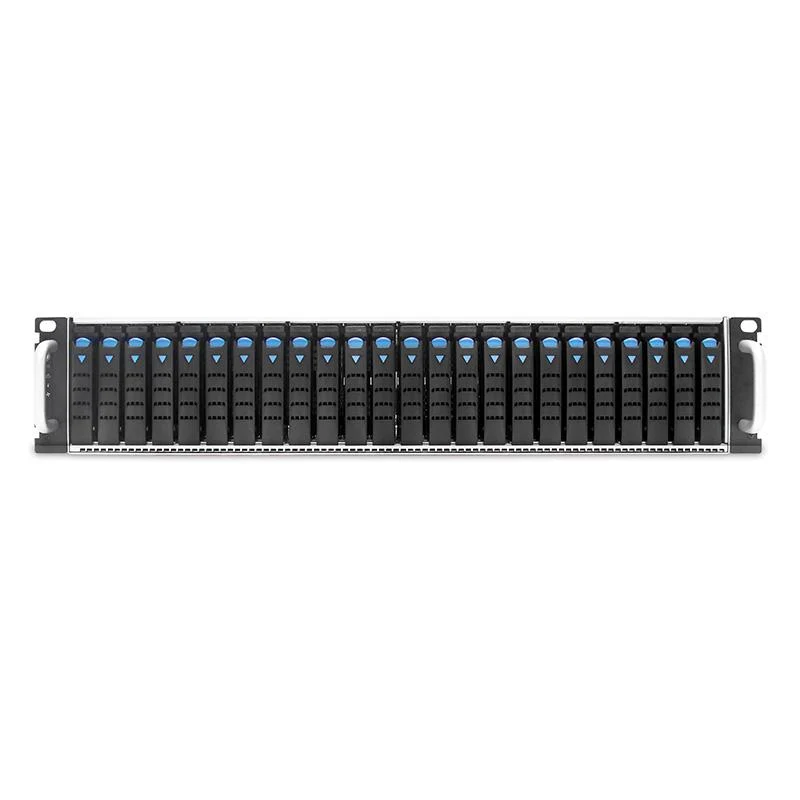

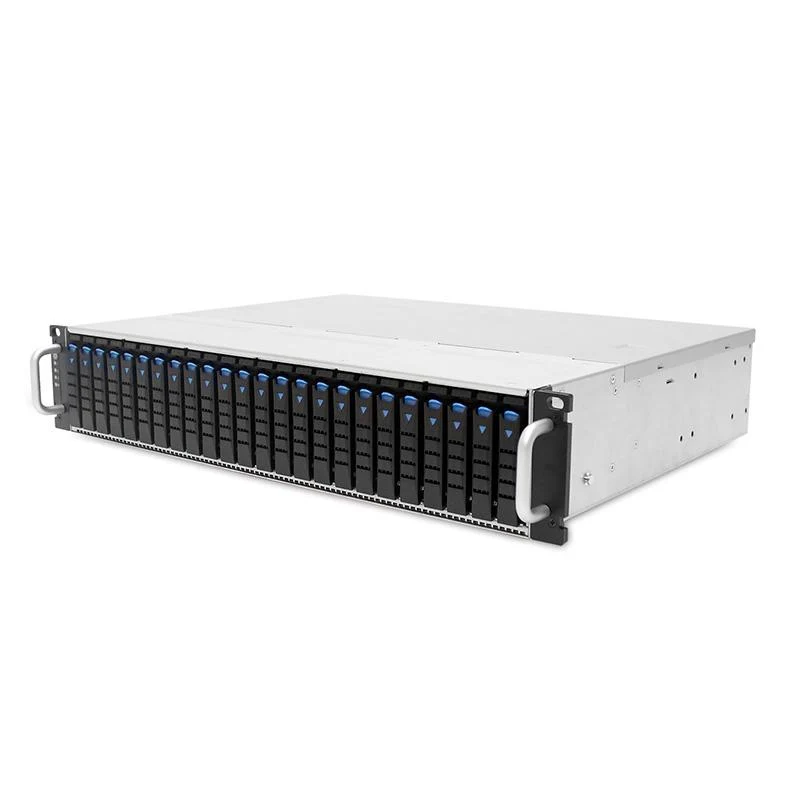

2U 12G JBOD 24 x 2.5" Hot-Swap Tooless Drive Trays with Dual Hot-Swap Expander, Dual BMC and a 550W Redundant PSU

Key Features

• Ruggedized design (Internal board to board connection)
• Tool-less design
• Hot-swap expander modules, drives, PSU, fans
• Short-depth
• Clear front panel LED indicators
• Optimized thermal solution
• BMC onboard

Features & Benefits

IPC-S2AT is an innovative 2U24 JBOD that integrates 2.5" SAS (12G, dual) /SATA (6G, single) disk drive, Broadcom SAS35X-Series expander chip, and board-to-board connection design into a compact and stable system with exceeding productivity.

Key Features

• Ruggedized design (Internal board to board connection)
• Tool-less design
• Hot-swap expander modules, drives, PSU, fans
• Short-depth
• Clear front panel LED indicators
• Optimized thermal solution
• BMC onboard

General

Number of Expander: •Dual

Expander Chip: • LSI SAS35X40

Host/Expansion Interface: • 4 x mini SAS HD (SFF-8644) per expander module

Drives Supported

Drive Interface: • 12Gb & 6Gb SAS if using dual expanders • 12Gb & 6Gb SAS/SATA if using single expander

Form Factor: • SFF 2.5”

Administration / Management

Admin/Firmware Upgrade: • In-band & Serial port interface • IEM port

LED Indicators, Audible Alarm: Yes

Hot-swap & Redundancy

Disk Drive: • 24 hot-swap

Cooling: • 2x 60x56mm hot-swap fans

Power Supply: • 550W 1+1 hot-swap redundant 80+ Platinum

Power Entry: Dual AC Inlet

Expander Modules: Dual expanders

Electrical & Environment

Universal A/C Input: • 100~127V~,50/60Hz, 7.0A • 200~240V~,50/60Hz, 3.5A

Operating Environment: • Temperature: 0ºC to 35ºC • Relative humidity: 20% to 80%

Non-operating Environment: • Temperature: -20ºC to 60ºC • Relative humidity: 10% to 90%

Physical Specification

Dimensions (W x D x H): • mm: 438 x 345 x 87.5 • inches: 17.2 x 13.6 x 3.4

Gross Weight (w/ PSU, Rail; w/o Pallet, Disks): • kgs: 20.05 • lbs: 44.2

Packaging Dimension (W x D x H): • mm: 605 x 640 x 318 • inches: 23.8 x 25.2 x 12.5

Mounting (Options): • Adjustable plate (support rack post: 400-500mm) • 20” tool-less rail
