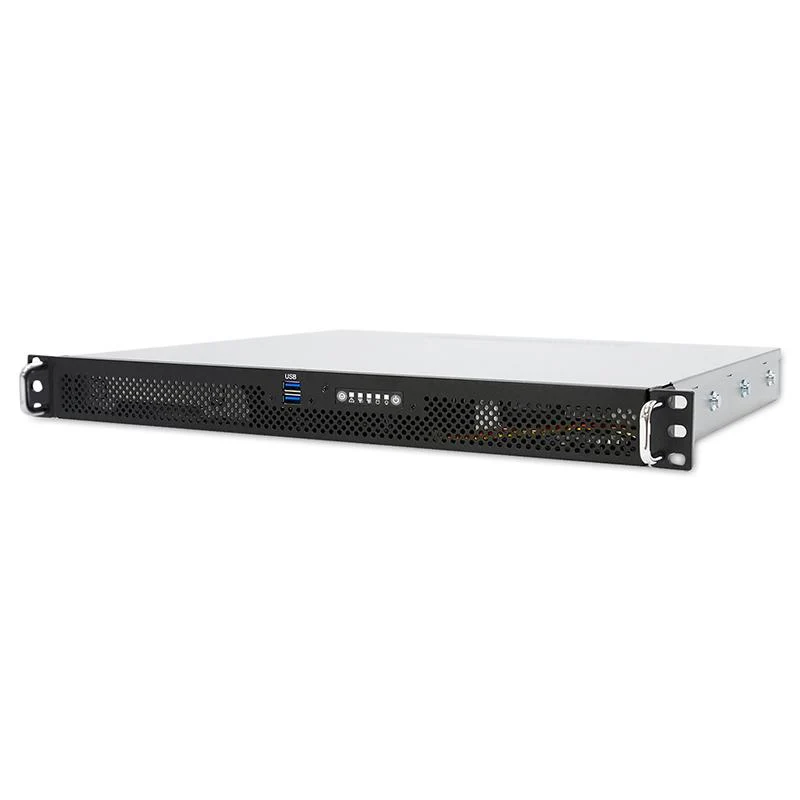

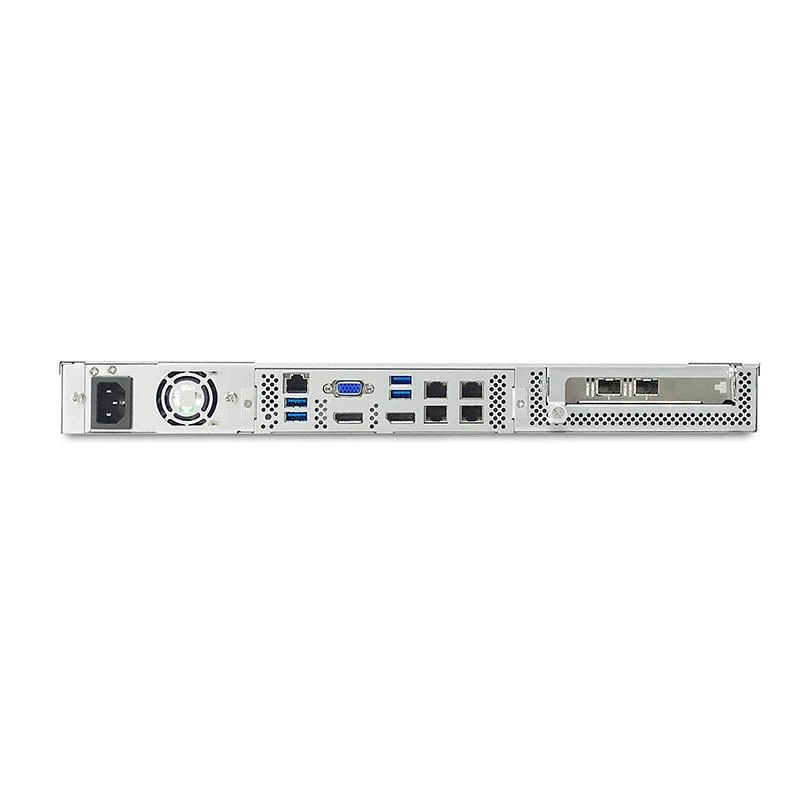

1U Short Rugged Rackmount Chassis 2 x 3.5" ,2x2.5" Internal (250 Watt PSU Inc.)

Key Features

• Rugged design to meet most applications.
• Front ventilation for superior cooling.
• Front Access Dual USB 3 Port for software maintenance.
• 1 x 40x40x28 mm (4P) fan standard, 2x optional
• Short depth design for space critical applications
• Equipped with 250watt PSU 80+ Gold

Features & Benefits

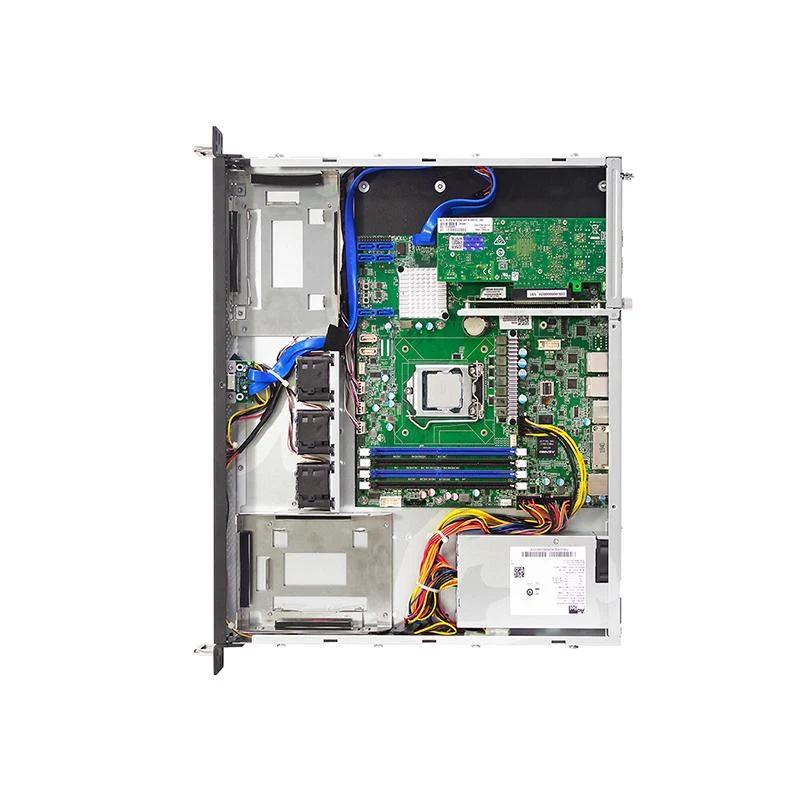

The IPC-C1E-BAS25-RH-N1 is an entry-level 1U appliance chassis with 15” depth for space-sensitive applications, such as Network & Security appliance, firewall, VPN, Telephony and military applications. Standard ATX size (9.6” x 12”) motherboard can be populated into this appliance chassis. The IPC-C1E-BAS25-RH-N1 is i a cost-effective appliance chassis that provide lower TCO (total cost of ownership) to IT professionals for higher ROI.

Dimensions (W x D x H) (with chassis ears)
• mm : 482.6 x 381 x 44.4
• inches : 19 x 15 x 1.75

Industry Standard
EIA-RS310D

Material
Heavy-duty preplated SPGC cold-rolled steel

Color
Front Panel : Black

Cooling
Standard :
• Front : 1 x 40x40x28 mm fan ( 4P)
Options :
• 2 x 40x40x28 mm fans (PCICASE SKU: IPC-SF4028-4P)

Power Supply
Standard :

• 250W single Flex ATX PSU, 80+ Gold

Expansion Slot
1 x Full Height Via Riser Card (Please See Optional Product For Details)

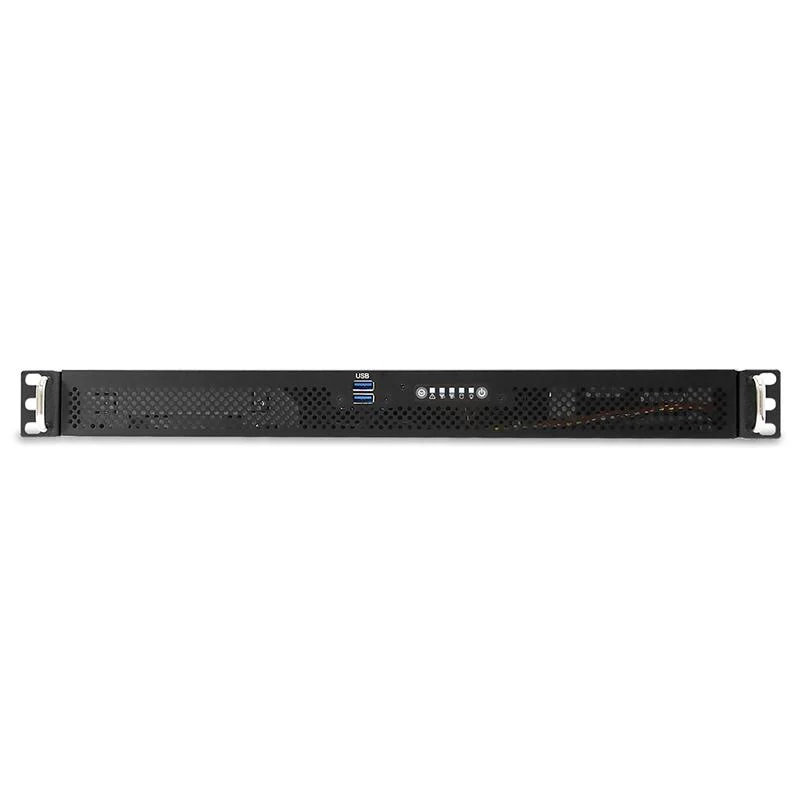

Front Panel
• Power on/off
• System reset
• 2 x USB 3 ports

LED Indicators
• Power
• LAN
• Drive

System Board
Up to 12”(W) x 9.6”(D) ATX compliant MB

Drive Bays
• Internal : 2x3.5" + 2 x 2.5”

Storage Temperature
0°C(32°F) ~ 50°C(122°F)

Humidity
5% ~ 95% non-condensing

Gross Weight (w/ PSU; w/o Rail)
• kgs : 7
• lbs : 15.4

Package Dimension (W x D x H)
• mm : 548 x 574 x 173
• inches : 21.6 x 22.6 x 6.8

Cubic Feet
1.9

Container Load Quantity
• 20’ : 500
• 40’ : 1025
• 40’ H : 1235

Mounting

Slider Rails: PCICASE SKU IPC-SY034-1
